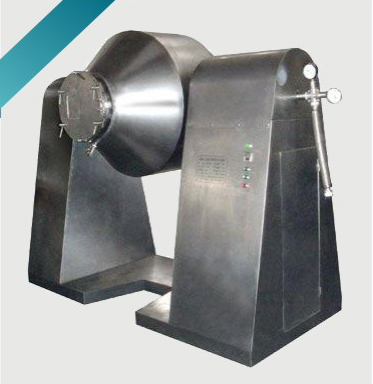

產品概述/Product overview
SZG雙錐真空干燥機是干燥裝置，雙錐真空采用皮帶--鏈條兩彈性聯接方式，因而設備運行平穩。特別設計的工藝，充分體現了兩支軸的良好同心，熱媒及真空系統均采用可靠的機械密封技木的旋轉接頭。
SZG rotary vacuum dryer is a drying device of new generation developed by our factory based on technologies of similar domestic products. The two cone-vacuum adopts belt-chain double elastic connection method, therefore the equipment can run in a stable manner. The specially designed process fully shows the good concentricity of the two shafts. Thermal media and vacuum system all adopt reliable mechanical sealing or rotating connector of American Technology.

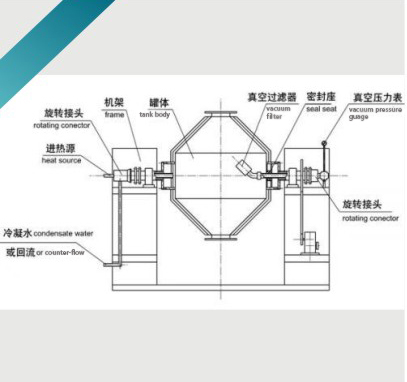

工作原理 /operating principle
在密閉的夾層中通入熱能源（如熱水，低壓蒸汽或?qū)嵊停崃拷?jīng)內殼傳給被干燥物料。在動力驅動下，灌體作緩慢旋轉，罐內物科不斷地混合從而達到強化干燥的目的。
物料處于真空狀態，蒸汽壓下降使物料表面的水份（容劑）達到飽和狀態而蒸發了，并由真空泵及時排出回收。物料內部的水份（溶劑）不斷的向表面滲透、蒸發、排出、三個過程不斷進行，物料在短時間內達到干燥目的。
Supply heat energy (such as hot water, steam of low pressure or heat conduction oil) into the closed interlayer. The heat will be transferred to materials to be dried by inner shell. The tank body will be driven to rotate slowly. The materials inside the tank are mixed to strength drying purpose.
The materials are under vacuum status. Steam pressure will decrease which make the water on material surface (solvent) become saturated and then evaporate. The water will be discharged and recycled by the vacuum pump immediately. Water (solvent) inside the material is permeated, evaporated and discharged from the surface. The said three processes happen constantly and the materials will be dried in a short period.
|
 |
 |
產品特點/Product features
容器不斷旋轉，物料加熱表面得以更新；
Constant rotation of the vessel keeps renewal of heating surface of the materials;
間接加熱，不會被污染；
Indirect heating gives no pollution;
熱效率高，比一般烘箱提高2倍以上；
High heat efficiency which is over 2 times than the common oven;
容器旋轉速可在3--13rpm范圍內調節；
The rotation speed of the vessel can be adjusted within 3-13rpm;
恒溫控制溫度由數顯儀顯示；
Thermostatical control temperature will be shown on the digital display;
溫度可在30-160度之間調節，溫籌2度以內。
The temperature can be adjusted between 30-160 degree and temperature difference shall be within 2 degree.
主要用途/main application
本設備主要用于醫藥、化工、食品等行業進行以下物料干噪；
This equipment is mainly used for drying of following materials in pharmaceutical, chemical, food and other industries;
回收殘余揮發物的物料；
Materials which are used to recycle residual volatiles;
回收干燥時排出的蒸汽的物料；
Materials which are used to recycle steam discharged during drying process
強烈刺激、有毒性物料；
Material with strong irritation or is toxic;
不能承受高溫的物料；
Materials cannot resist to high temperature;
容易癢化的物料；
Materials which are easy to be oxidized;
對結晶體不允許破壞的物料。
Materials which the crystals are not allowed to be destroyed.
本機是主機設備，需配備加熱系統，真空泵，冷凝器輔助裝置。（本廠可代為用戶配備有關設備，請訂貨說明）
This machine is the main machine which needs to be equipped with heating system, vacuum pump and auxiliary device of the condenser. (Our factory can equip all the related equipments for you. Please note during ordering) |
|
